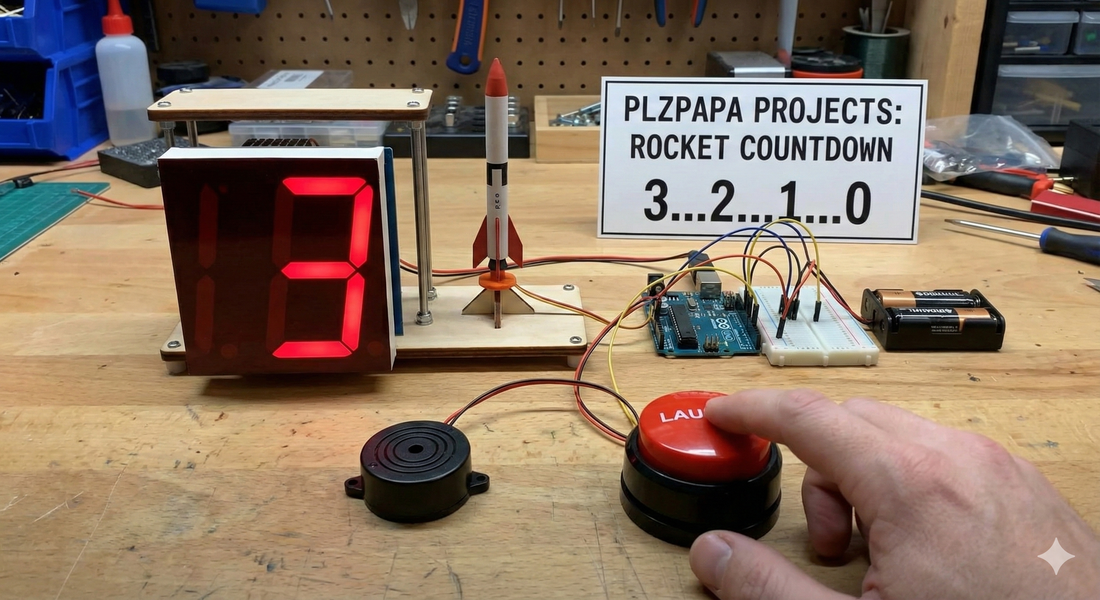

Countdown Timer (Rocket Launch) Robotic Kit

Countdown Timer (Rocket Launch) Robotic Kit

What It Does (Yeh Kya Karta Hai?)

Yeh "Reverse Counting" project hai. Jaise NASA rocket launch karta hai: 3... 2... 1... 0 (Blast off!). Is mein hum Buzzer bhi add karein gay taake jab 0 aaye to awaaz aaye.

Components Required

  • Microcontroller: Arduino Uno
  • 7-Segment Display (1 Digit, 10 Pins wala)
  • Add: 1 x Buzzer (Active).
  • Jumper Wires (Kam se kam 8)

Wiring (Taarein Jorna)

Step 1: Common Connection (Resistor Yahan Lagega)

Display ki Neeche wali line mein jo Beech wala Pin (Pin 3) hai:

  • Us Pin se Resistor jodein.
  • Resistor ka doosra sira Arduino GND mein lagayen. (Is se sab LEDs safe rahengi).

Step 2: Segments Connection (A to G)

🔻 Neeche Wali Line (Left se shuru karein):

  1. Pehli Pin (E): → Arduino Pin 6
  2. Dusri Pin (D): → Arduino Pin 5
  3. Teesri (Common): → Yeh humne Resistor/GND se jod di hai.
  4. Chothi Pin (C): → Arduino Pin 4
  5. Paanchvi (Dot): → Khali chhor dein.

🔺 Upar Wali Line (Left se shuru karein):

  1. Pehli Pin (G): → Arduino Pin 8
  2. Dusri Pin (F): → Arduino Pin 7
  3. Teesri (Common): → Khali chhor dein (Neeche wali ground kaafi hai).
  4. Chothi Pin (A): → Arduino Pin 2
  5. Paanchvi Pin (B): → Arduino Pin 3

Buzzer:

  • Long Leg (+) -> Pin 10
  • Short Leg (-) -> GND

Push Button

  1. Button ki Aik Taang (Leg 1): Isay seedha Arduino Pin 12 mein laga dein.
  2. Button ki Doosri Taang (Diagonal Leg): Isay seedha GND (Ground) mein laga dein.
🛒 Buy This Robotic Kit Now

Code

// PlzPapa Project #34: Countdown Timer
// 9 se 0 tak ginti aur phir BLAST!

const int buttonPin = 12;
const int buzzerPin = 10;

byte numbers[10][7] = {
  {1,1,1,1,1,1,0}, // 0
  {0,1,1,0,0,0,0}, // 1
  {1,1,0,1,1,0,1}, // 2
  {1,1,1,1,0,0,1}, // 3
  {0,1,1,0,0,1,1}, // 4
  {1,0,1,1,0,1,1}, // 5
  {1,0,1,1,1,1,1}, // 6
  {1,1,1,0,0,0,0}, // 7
  {1,1,1,1,1,1,1}, // 8
  {1,1,1,1,0,1,1}  // 9
};

void setup() {
  for(int i=2; i<=8; i++) { pinMode(i, OUTPUT); }
  pinMode(buttonPin, INPUT_PULLUP);
  pinMode(buzzerPin, OUTPUT);

  showDigit(9); // Ready position
}

void showDigit(int num) {
  int pin = 2;
  for(int i=0; i<7; i++) {
    digitalWrite(pin, numbers[num][i]);
    pin++;
  }
}

void loop() {
  if (digitalRead(buttonPin) == LOW) { // Start Button

    // 9 se 0 tak loop
    for(int i=9; i>=0; i--) {
      showDigit(i);

      // Har second par 'Tick' ki awaz
      digitalWrite(buzzerPin, HIGH);
      delay(100);
      digitalWrite(buzzerPin, LOW);
      delay(900); // Total 1 second
    }

    // 0 par pohoch gaye (Blast Off!)
    for(int k=0; k<5; k++) { // 5 baar blink karega
      showDigit(0);
      digitalWrite(buzzerPin, HIGH);
      delay(100);

      // Screen OFF
      for(int j=2; j<=8; j++) digitalWrite(j, LOW);
      digitalWrite(buzzerPin, LOW);
      delay(100);
    }

    showDigit(9); // Reset for next launch
  }
}
